CAT6A Patch Lead

Download Datasheet

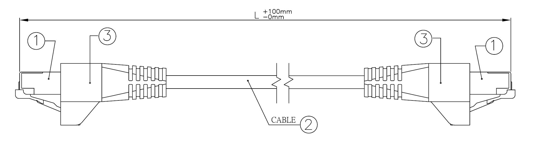

FTP CAT6A / 10G PATCH CORD
Part Number
D023x-SHloc

Transmission Performance
Meet TIA/EIA-568-B.2-10 CAT6A Channel Requirements.

Environmental Conditions
TEMPERATURE RANGE
Storage: -40 to +70°C
Operation: -10 to +60°C
Relative Humidity (Operational): Maximum Non-condensing 93%

Electrical
Electrical Insulation Resistance: 5000 MΩ min. @ 100V d.c.
Dielectric Withstanding Voltage: 1000V d.c. or a.c. Peak Contact to Contact 1500v d.c. Peak Contact to test Panel
Contact Resistance: 20mΩ Max.
Current Rating: as figure.

Mechanical
Retention: 50N (11 lbf) for 60s±5s
Insertion / Extraction Life: 750 Cycles Minimum
Tensile Strength: greater than or equal to 20N per Wire

Mechanical Specifications
PLUG
Assembly: Compatible with FCC Part 68 Subpart F.
Housing: UL Listed 94V-0 Flame-Retardant PC (PolyCarbonate)
IDC Blades: Phosphor Bronze
Contact area of Blades is selected plated with 50 micro-inches of hard Gold over 100micro-inches of nickel.
Shield: Brass alloy plated with 100 micro inch Nickel.

CORDAGE
Jacket Dimension: Diameter<0.25 inches.
Construction: CAT6 FTP 26 AWG 7 Stranded 4-pair Copper wire Conductor.
High Density Polyethlene Insulation Material.
Fire Retardant LSZH compounds jacket.
Also available FR – PVC
