Category

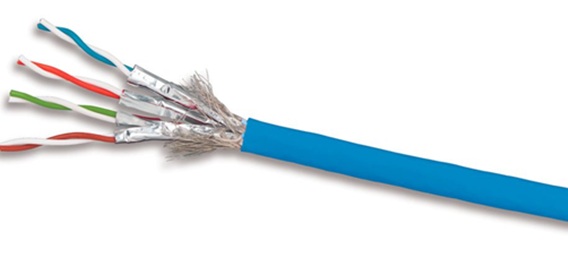

S/FTP CAT7, 4P, LSZH
Part Number
D019x-SFlsc
Standard
ISO/IEC11801, EN 50288-2-1, EN 50173, IEC 61156-5-1, IEC 60332-1-2, EIA/TIA 568C.2
Conductor
Material: SOLID-Bare Copper
Nom. O.D. (mm) 0.585 Up +0.005 Down -0.005
Insulation
Material: Skin-foam-skin PE
Diameter: 1.350±0.05 mm
Inner Screening Material
Aluminum Foil
Drain wire: No
Outer Screening Material
Tinned copper 0.10 mm
Coverage: ≥40%
Sheath
Thickness: 0.55±0.05mm
External O.D.: 7.9±0.5 mm
Surface: Clean
Material: LSZH
Color: According to the requirement
Surface Printing
Letter height: 3.0±0.3mm
Color: Black
Print Error and Space: ≤±0.5%, 1m
Core Color
1 White/Blue
2 White/Orange
3 White/Green
4 White/Brown
Packing
Wooden Tray and Carton
Wooden Tray Dimension: According to the requirement
Packing length 305±1.0m
Rip-cord: Yes
Sheath Physical Properties
Before Aging Tensile Strength (Mpa) ≥10.0
Elongation (%) ≥125
Aging Period (°C×hrs) 100°C×24h×7d
After Aging Tensile Strength (Mpa) ≥8
Elongation (%) ≥100
Cold bend (-20±2°C×4h) 8×Cable O.D.，No visible cracks
Electrical Characteristics (20°C)
Impedance (Ω): (1-100 MHz) 100±15Ω; (100-250 MHz) 100±18Ω; (250-600 MHz) 100±25Ω
Delay Shew (ns/100m): ≤25
Velocity of Propagation (%): 74
Unbalanced-to-ground capacitance (pf/100m): max 330
DC Resistance (Ω/100m): max 9.5
DC Conductor Resistance Unbalance (%): max 2.0
